Clean, Quiet, Reliable Power.

Hybrid, Solar and Battery Power for Construction and Major Projects



Makinex Renewables has a range of products to provide clean, quiet, reliable
power with the payback to make it work.

Web-Icons_247
Continuous Power
Bowser-1
98% Fuel Reduction*
Web-Icons_australia
Australian Technology

Our Innovation Range

Single-V2
Hybrid Power System (HPS)
BESS Image 2-1
Battery Energy System (BESS)
PPB Updated resized-2
Portable Power Box (PPB)
4 SPAN SHELTER Rendering (7)
Solar Add-On

Global Impact of Makinex Renewables

Emissions Saved CO2 (kg)

Fuel Saved (Litres)

Trees Saved

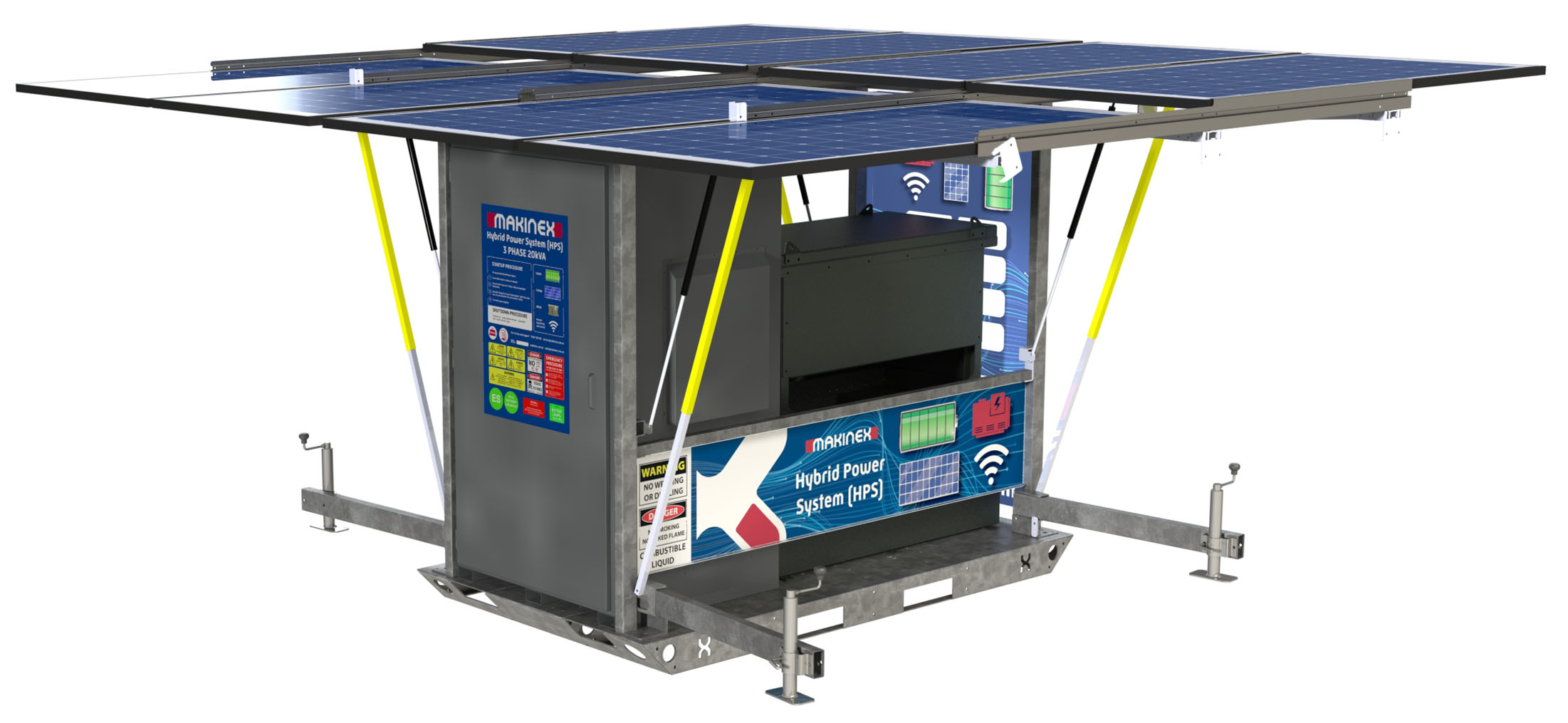

Our Hybrid Power Systems (HPS)

2-1

HYBRID POWER SYSTEM
SINGLE SKID

Description

The single-skid system consists of solar panels, lithium batteries and a backup
generator all intelligently controlled to provide continuous power.
Primarily deployed for smaller power needs, saving up to 300L of diesel and
750Kg of CO2 every week!*

SPECIFICATIONS
MODEL GENERATOR FUEL TANK BATTERY INVERTER SOLAR ADD-ON SOLAR
HPS 15 15 kVA 400 ltr 20 kW h 15 kVA (1P) 4 kWP Y
HPS 20 20 kVA 400 ltr 30 kW h 20 kVA (1P or 3P) 4 kWP Y

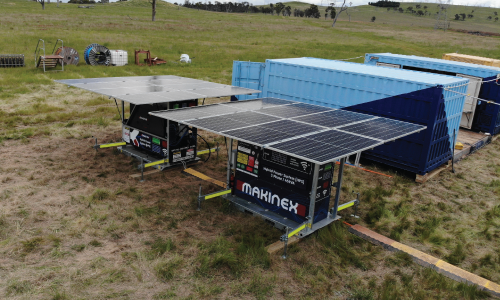

HYBRID POWER SYSTEM
DOUBLE SKID

Description

The double-skid system includes a battery/control skid and a generator/tank skids which simply plug together using the included cables. Used to power large construction compounds, saving up to 700L of diesel and 2 Tonnes of C02 per week*.

Double-V2
SPECIFICATIONS
MODEL GENERATOR FUEL TANK BATTERY INVERTER SOLAR ADD-ON SOLAR
HPS 45 45 kVA 500 ltr 60 kW h 45 kVA (3P) 8 kWP Y

HYBRID POWER SYSTEM
CONTAINER

Description

With advanced electrical safety features and temperature management, this beast is built for the most demanding applications. This unit encloses the
batteries, high output inverters and backup diesel generator all into one 20ft container.

Container-V2
SPECIFICATIONS
MODEL GENERATOR FUEL TANK BATTERY INVERTER SOLAR ADD-ON SOLAR
HPS 60 60 kVA External 90 kW h 60 kVA (3P) 5 kWP Y
HPS 100 100 kVA External 120 kW h 100 kVA (3P) 5 kWP Y

Our Battery Energy Storage Systems (BESS)

BESS10-Render-Transparent (1)

BATTERY ENERGY STORAGE SYSTEM
BESS 10

Description

For short term power supply or integration with existing generator and/or solar systems as part of a hybrid solution. BESS 10 has output power of 10kW with battery capacity of 15kWh.


BATTERY ENERGY STORAGE SYSTEM
BESS 50

Description

For short term power supply or integration with existing generator and/or solar systems as part of a hybrid solution. BESS 50 has output power of 50kW with battery capacity of 100kWh.

BESS Image 2
BESS Image 3

BATTERY ENERGY STORAGE SYSTEM
BESS 100

Description

For short term power supply or integration with existing generator and/or solar systems as part of a hybrid solution. BESS 100 has output power of 100kW with battery capacity of 140kWh.

SPECIFICATIONS
MODEL MAX OUTPUT POWER INVERTERS BATTERY DIMENSIONS WEIGHT 3-PHASE
BESS 10 10 kW 1 x 10 kW 10 kW h 550W x 1200L x 1140H 600 kgs Y
BESS 50 50 kW 1 x 50 kW 50 kW h 1120W x 1760L x 2000H 1800 kgs Y
BESS 100 100 kW 2 x 50 kW 100 kW h 1120W x 2260L x 2000H 2100 kgs Y

Our Solar Add-Ons

CTS5 Render Image

SOLAR ADD-ON
CONTAINER TOP SOLAR (CTS)

Description

Take advantage of your container roof space on-site. Container Solar
modules drop straight onto a standard 20ft container. Output is AC-coupled
so it can be wired into anywhere on the AC bus with any HPS or BESS.

SPECIFICATIONS
MODEL ADD-ON SOLAR ADD-ON SOLAR
CTS 5 5 kWP Y

SOLAR ADD-ON
FIELD SOLAR

Description

Deployable Solar infrastructure that can provide covered areas and significant on-site solar production. Output is AC-coupled so it can be wired into anywhere on the AC bus with any HPS or BESS.

4 SPAN SHELTER Rendering (7)

VERSATILE AND ADVANCED OFF-GRID POWER SYSTEM

Hybrid Power means you can take advantage of both traditional and renewable energy sources, making it more efficient than either one alone. HPS is designed to capture, store and produce clean, sustainable energy - even at night or in low light.

Continuous, Sustainable Energy

HPS is a combination of highly efficient solar panels, high-capacity battery storage and a backup generator that ensures 24/7, environmentally friendly power.

Portable and Reliable Power

HPS is the only solution in the world that goes wherever you need it. Simply transport to your site and within moments, clean and constant power is at the ready.

Reduce Onsite Running Costs

The HPS system is a game-changer for any site that needs to be maintained. It removes the dependency on generator power, lowering refuelling and servicing costs.

Page 3 Image resized

Makinex Renewables Innovation Centre

Opened December 2023

The Makinex Renewables Innovation Centre is a facility dedicated to advancing renewable energy technologies. The Centre serves as a hub for research, development, and increased production capabilities, contributing to a more sustainable and environmentally friendly future in the construction industry.

"Compared to normal diesel generation, we now have seamless operations onsite, we're seeing fuel savings and we're doing our bit for the environment."

Web-Icons_quote

Darrell van Bruchem | UGL Pty Limited.

2-1

Hybrid Power System

A better way to power construction sites, temporary residences or remote locations.

Using solar panels, batteries and a back diesel generator, the HPS generates, stores and delivers continuous clean power regardless of the weather.

Web-Icons_battery

Fringe of Grid

No need to connect to grid power. HPS stores solar energy directly into the battery banks. The backup generator kicks in only when the energy stores are low.

Web-Icons_eco-friendly

Eco Friendly

HPS excels when compared to running diesel generators for long periods of time, considerably reducing carbon emissions
and fuel consumption.

Web-Icons_remote-monitor

Easy Control

Via a remote management system, HPS diagnostics can be monitored via any computer or mobile device. HPS can even be shut down or restarted via this system.

Web-Icons_Rapid-Set-1

Simple, Rapid Setup

HPS can be deployed quickly and easily. Simply place HPS onsite securely, unfold the solar panels, switch on the batteries
and it's ready to go.

Web-Icons_Superior-Design

Superior Design

While other hybrid systems exist, none can be rapidly deployed or fitted with additional solar or battery components making HPS simply one-of-a-kind.

Web-Icons_low-noise

Low Noise Operation

HPS can generate the same power as an equivalent diesel generator except with 80% less noise. HPS can also be programmed not to produce noise during certain periods.

HYBRID POWER SYSTEM

 CASE STUDY

VERSATILE AND ADVANCED OFF-GRID POWER SYSTEM

Hybrid Power means you can take advantage of both traditional and renewable energy sources, making it more efficient than either one alone. HPS is designed to capture, store and produce clean, sustainable energy - even at night or in low light.
